oDroid 4-Channel Relay Board for M1S

R 342.39 342.39 ZAR

R 297.73

Add to Cart


Generate your quote and pay online via credit card or via EFT.  A representative will contact you in 24 hours to arrange details of your purchase and make any required arrangements.  If you prefer, call us to discuss on +27-11-7818014.

        4 Channel Relay Board for M1S

        Unleash control with the 4 Channel Relay Board for ODROID-M1S

        Take command of your projects with the 4 Channel Relay Board! This powerful add-on board for the ODROID-M1S allows you to effortlessly control high voltage and high current external devices directly through your ODROID's GPIO pins.

        Transform your ODROID-M1S into a domotic powerhouse! Order your 4 Channel Relay Board today!

        Features:

        • 4-Channel Relay Control: Manage up to four separate devices with ease.

        • Safe and Isolated: Built-in PC817 photocouplers safeguard your ODROID by isolating the GPIO pins from high voltage circuits.

        • Flexible Connectivity: A single RS232 serial port provides a reliable communication channel.

        • Seamless Integration: Optional board reset and power button pins for a truly integrated experience (functionality may vary).

        Accessories:


        Specifications:

        Form Factor
        		Board dimension : 90 (L) x 65 (W) x 28 (H) mm
        I/O4x RELAY (SRD-05VDC-SL-C)
        1x RS232

        Description:

        4 channel relay board will provide the ability to control high voltage and high current external devices through GPIO pins easily.

        * Add-on board for ODROID-M1S only.
        * 4-channel relay control via GPIO pins.
        * GPIO isolation using PC817 photocoupler to prevent interference from high voltage circuit.
        * Single RS232 serial port.
        * Board reset and power button pins (Optional)

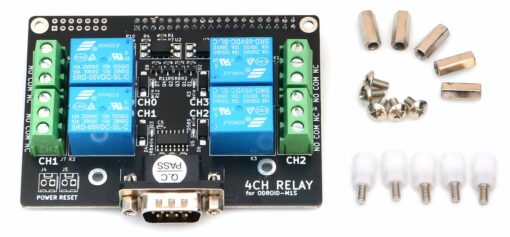

        4 Channel Relay board for M1S

        Flectra CMS - a big picture

        Unleash control with the 4 Channel Relay Board



        Specifications for oDroid 4-Channel Relay Board for M1S

        Colour Green

        Colour

        Green
